PET Flakes Pelletizing

Twin Screw Extruder For PET Flakes Pelletizing Line

If you are looking for good pelletizing extruder for PET flakes, TSE is your good choice, from June, 2017, we spent more than 3 months to test special extruder for PET flakes, Finally we found a good solution which can keep good IV and color for PET flakes recycling.

- IV can be kept over 95%, 0.63-0.7

- Pellet Transparent and Beautiful

- Two solutions for your flakes

- Save more energy

- Save more budget for you

Advantages of Our PET Flakes Pelletizing Line Twin Screw Extruder

* Good Dispersion and Compounding

* Easy Solution For Cleaning the Screw

* Uniform and Beautiful End Pellet

* Easy Operation and More Stable

PET Flakes Pelletizing

Main Technical ​Parameters

Model

Dia

RPM

L/D

Motor

Output Capacity

TSE-20

21 mm

600/800

32-60

5 kw

2-10 kg/h

TSE-36

35.6 mm

600/800

32-60

18.5/22 kw

10-100 kg/h

TSE-50

50.5 mm

600/800

32-60

55/75 kw

100-350 kg/h

TSE-65

62.4 mm

600/800

32-60

90/110 kw

350-500 kg/h

TSE-75

71 mm

600/800

32-60

132/160 kw

500-1000 kg/h

TSE-95

93 mm

600

32-60

250/315 kw

1000-2000 kg/h

TSE-135

135 mm

600

32-60

500/900 kw

3000-5000 kg/h

Cutting Types

There are 3 different cutting types for different application.According to your raw materials, We can customize the best solution for your business.

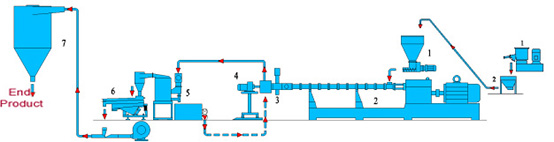

Water-cooling Strands Cutting Type

PET flakes pelletizing water cooling strands cutting type

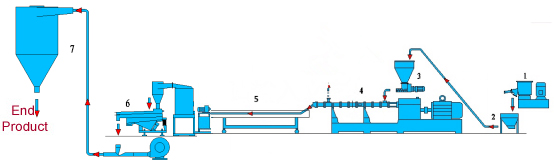

Water-flowing Cutting Type

PET flakes pelletizing water flow cutting type

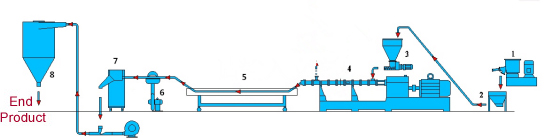

UnderWater Cutting Type

PET flakes pelletizing underwater cutting type
