Twin Screw Extruder For TPE/TPU/TPR Elastomer
TSE series elastomer twin screw extruder with underwater pelletizing system which can replace old processing Kneader, our solution can be easier and save more money than old processing.
TPE/TPU/TPR elastomer extruder line customized for making elastomer, Ouro twin screw extruder designed for these elastomer making can replace kneader which help you save more money and power. If you want to make TPE/TPU/TPR, contact us, we can provide better solution for you.
Advantages of Our Elastomer Twin Screw Extruder
* Good Dispersion and Compounding
* Save more Money and Power
* Non Moisture Contains in End Pellet
* Easy Operation and More Stable
Main Technical Parameters
| Model | Dia | RPM | L/D | Motor | Output Capacity |
| TSE-20 | 21 mm | 600/800 | 32-60 | 5 kw | 2-10 kg/h |
| TSE-36 | 35.6 mm | 600/800 | 32-60 | 18.5/22 kw | 10-100 kg/h |
| TSE-50 | 50.5 mm | 600/800 | 32-60 | 55/75 kw | 100-350 kg/h |
| TSE-65 | 62.4 mm | 600/800 | 32-60 | 90/110 kw | 350-500 kg/h |
| TSE-75 | 71 mm | 600/800 | 32-60 | 132/160 kw | 500-1000 kg/h |
| TSE-95 | 93 mm | 600 | 32-60 | 250/315 kw | 1000-2000 kg/h |
| TSE-135 | 135 mm | 600 | 32-60 | 500/900 kw | 3000-5000 kg/h |
Cutting Types
There are 2 different cutting types for different application.According to your raw materials, We can customize the best solution for your business.

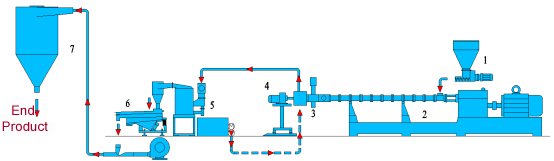

Water-ring Hot-face cutting type

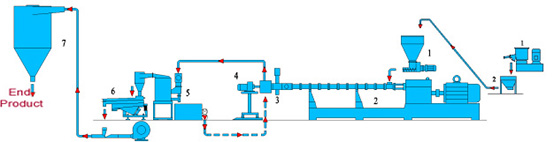

UnderWater Cutting Type
