Double stage Extruder Line For Soft PVC
KTE/SE double stage extruder for soft PVC compounding, First stage is twin screw extruder for compounding, second stage is single screw extruder for making pellets. This solution can make soft PVC materials.
Main Applications
– Cable Material
– Shoe Sole Material
– Rain Boots
– Other Soft PVC Application
Advantages of Our Double-stage Pelletizing Line
– Good Dispersion and Compounding- Easy Solution For Cleaning the Screw
– Uniform and Beautiful End Pellet
– Easy Operation and More Stable
Main Technical Parameters
| Model | Dia | RPM | L/D | Motor | Output Capacity | |
| TSE/SCE-50/100 | TSE-50 | 21 mm | 500 | 24-48 | 45 kw | 100-350 kg/h |
| SCE-100 | 100 mm | 85 | 7-20 | 30-37kw | ||
| TSE/SCE-65/150 | TSE-65 | 62.4mm | 500 | 24-48 | 75 kw | 200-500 kg/h |
| SCE-150 | 150 mm | 85 | 7-20 | 37-45 kw | ||
| TSE/SCE-75/180 | TSE-75 | 71 mm | 500 | 24-48 | 110 kw | 400-800 kg/h |
| SCE-180 | 180 mm | 85 | 7-20 | 45-55 kw | ||
| TSE/SCE-95/200 | TSE-95 | 93 mm | 400 | 24-48 | 200-250 kw | 700-1500 kg/h |
| SCE-200 | 200 mm | 85 | 7-20 | 55-75 kw | ||
Cutting Types
There are 5 different cutting types for different application.According to your raw materials, We can customize the best solution for your business.

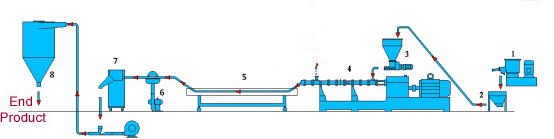

Water-cooling Strands Cutting Type

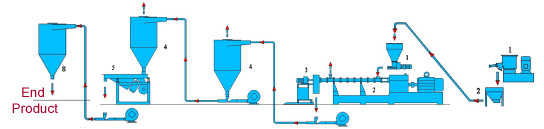

Air-cooling Hot-face cutting type
Water-ring Hot-face cutting type

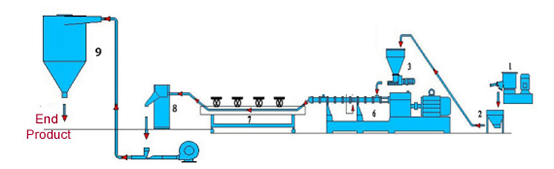

Air-cooling Strands Cutting type

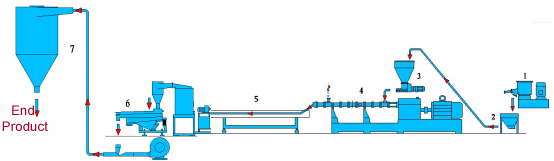

Water-flowing Cutting Type
UnderWater Cutting Type
