Twin Screw Extruder For PET Flakes Pelletizing Line
If you are looking for good pelletizing extruder for PET flakes, TSE is your good choice, from June, 2017, we spent more than 3 months to test special extruder for PET flakes, Finally we found a good solution which can keep good IV and color for PET flakes recycling.
– IV can be kept over 95%, 0.63-0.7

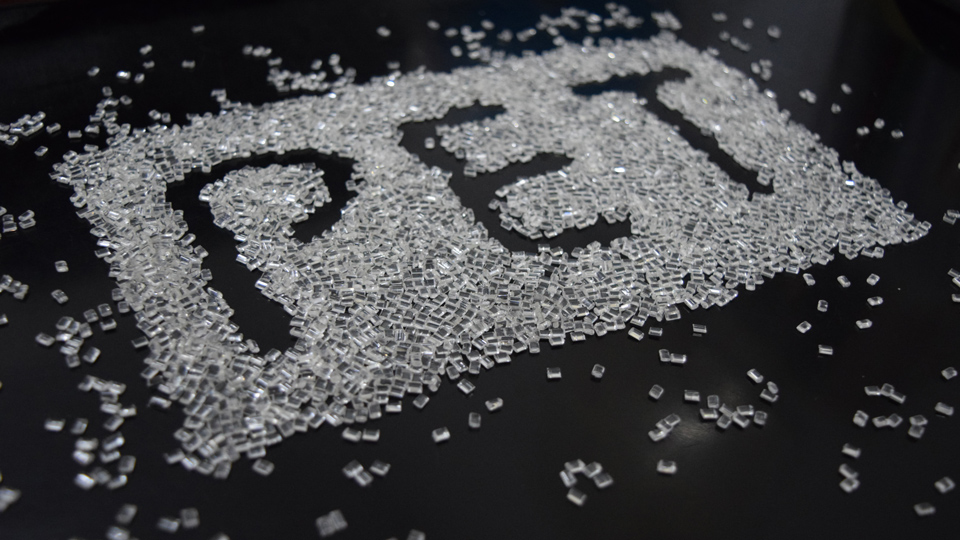

– Pellet Transparent and Beautiful
– Two solutions for your flakes
– Save more energy- Save more budget for you
Advantages of Our PET Flakes Pelletizing Line Twin Screw Extruder
* Good Dispersion and Compounding
* Easy Solution For Cleaning the Screw
* Uniform and Beautiful End Pellet
* Easy Operation and More Stable
Main Technical Parameters
| Model | Dia | RPM | L/D | Motor | Output Capacity |
| TSE-20 | 21 mm | 600/800 | 32-60 | 5 kw | 2-10 kg/h |
| TSE-36 | 35.6 mm | 600/800 | 32-60 | 18.5/22 kw | 10-100 kg/h |
| TSE-50 | 50.5 mm | 600/800 | 32-60 | 55/75 kw | 100-350 kg/h |
| TSE-65 | 62.4 mm | 600/800 | 32-60 | 90/110 kw | 350-500 kg/h |
| TSE-75 | 71 mm | 600/800 | 32-60 | 132/160 kw | 500-1000 kg/h |
| TSE-95 | 93 mm | 600 | 32-60 | 250/315 kw | 1000-2000 kg/h |
| TSE-135 | 135 mm | 600 | 32-60 | 500/900 kw | 3000-5000 kg/h |
Cutting Types
There are 3 different cutting types for different application.According to your raw materials, We can customize the best solution for your business.
Water-cooling Strands Cutting Type
Water-flowing Cutting Type
UnderWater Cutting Type
