Twin Screw Extruder for Color Masterbatch

Tse series color masterbatch special designed for various color masterbatch making, like red, green, blue, white, yellow etc. For color masterbatch making, the screw configuration design and gearbox speed is very important for dispersing pigments and base carriers.

With our extensive process know-how we tailor all the process steps from raw materials feeding, conveying, melting, dispersing, homogenizing, devolatilizing, pressure build-up to filtering and pelletizing exactly to the requirements of your masterbatch recipes. This gives you exactly what you expect: a compounding system that is optimally tailored to your application.

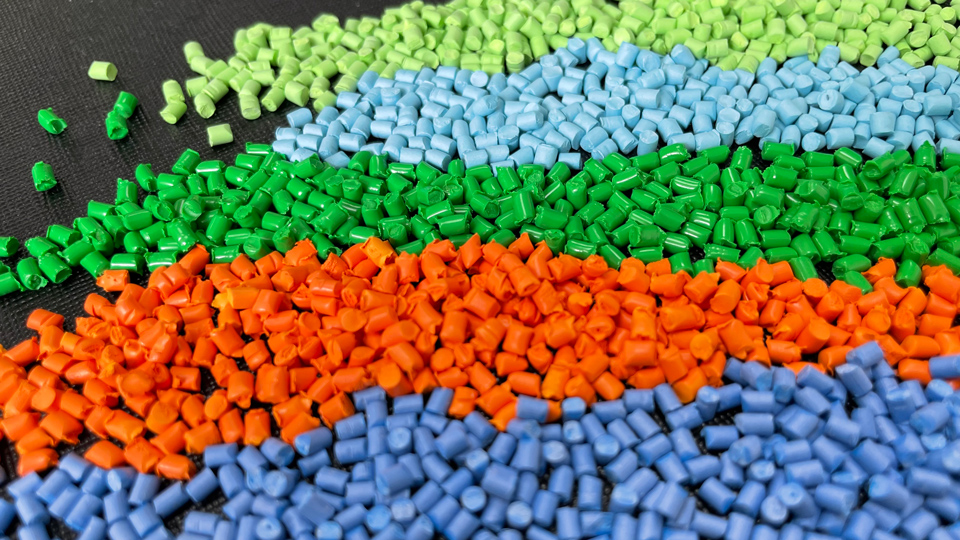

The term masterbatch includes concentrates of pigments or additives in a polymer matrix. Masterbatch is mainly available in the form of standard pellets but also in the form of mini-pellets. A distinction is made between white, black and colored masterbatch depending on the pigment type. The premix, split-feed and color-matching processes are available for compounding masterbatch.

We has full experience in this application, each year we sold more than 50 lines for color masterbatch, our customer including Holland Colours (Indonesia Branch), Prisma Colour (UK) etc. You can get better solution for your color masterbatch business.

Advantages of Our Color Masterbatch Twin Screw Extruder

* Good Dispersion and Compounding

* Easy Solution For Cleaning the Screw

* Uniform and Beautiful End Pellet

* Easy Operation and More Stable

Main Technical Parameters

Model	Dia	RPM	L/D	Motor	Output Capacity
TSE-20	21 mm	600/800	32-60	5 kw	2-10 kg/h
TSE-36	35.6 mm	600/800	32-60	18.5/22 kw	10-100 kg/h
TSE-50	50.5 mm	600/800	32-60	55/75 kw	100-350 kg/h
TSE-65	62.4 mm	600/800	32-60	90/110 kw	350-500 kg/h
TSE-75	71 mm	600/800	32-60	132/160 kw	500-1000 kg/h
TSE-95	93 mm	600	32-60	250/315 kw	1000-2000 kg/h
TSE-135	135 mm	600	32-60	500/900 kw	3000-5000 kg/h
